• Compact size(24x32mm)

• Supply current:DC5V-20V(can design 3V-24V)


• Current drain:<50uA

• Voltage Output:High/Low level signal:3.3V

• TTLoutput


• High sensitivity

• Delay time:5s-18minute(as customer requirement)

• Operation Temperature:-15⁰C-70⁰C.Infrared sensor:dual element, low noise, high sensitivity

• Light sensor:CdS photocell(can be add as customer requirement)

Description:

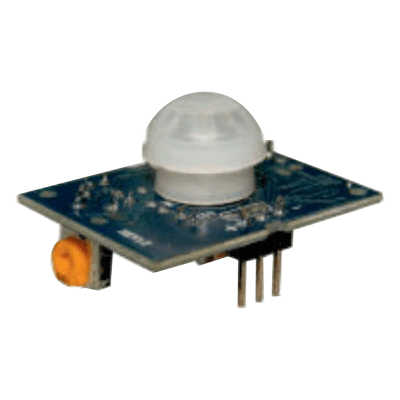

BS1700 is a pyroelectric sensor module which developed for human body detection. A PIR detector combined with afresnel lens are mounted on a compactsize PCB together with ananalog IC,,and limited components to form the module.High level output of variable width is provided.
